Extensions and Extension Points

Trados Studio provides a predefined set of extension points. You can add custom functionality by defining plug-in extensions that target those points.

Extensions

An extension is a unit of logic that provides functionality for Trados Studio through a specific extension point. To create an extension:

1. Create a class in your plug-in assembly.
2. Decorate the class with the attribute that identifies the extension point it is targeting.
3. Implement the interface that is required by the extension point.

Extension Points

An extension point is a location in Trados Studio where extensions can be added. To define an extension point:

1. Create a class in your plug-in assembly and derive it from the ExtensionAttribute base.
2. Decorate the class with the ExtensionPointInfoAttribute attribute.
3. Make sure the class has a default parameterless constructor. This is required because the plugin manifest generator uses XML serialization to save attribute information.

Other plug-in developers can create extensions for the extension points you define by following the procedure described under Extensions.

The ExtensionAttribute class defines the properties that plug-in developers can provide with their extensions:

• Id: A unique identifier for the extension.
• Name: A friendly name for the extension.
• Description: A description of the extension.
• Icon: An optional icon representing the extension.

The ExtensionPointInfoAttribute class specifies the name and type of the extension point:

• Name: Can be used by a plug-in manager UI to represent the extension point.
• Type: Can be static or dynamic, depending on whether one or more extensions can be enabled or disabled without restarting the application.

Example: Defining an Extension Point

This article uses a message transmitter example to demonstrate the concepts. The host application must be able to use pluggable message transmitters defined in plug-ins.

First, define an extension point:

• C#

[ExtensionPointInfo("Message Transmitters", ExtensionPointBehavior.Static)]
public class MessageTransmitterAttribute : ExtensionAttribute
{
    /// <summary>
    /// Constructor for XML serialization
    /// </summary>
    public MessageTransmitterAttribute()
    {
    }

    /// <summary>
    /// Constructor using basic properties.
    /// </summary>
    public MessageTransmitterAttribute(string id, string name, string description)
        : base(id, name, description)
    {
    }

    /// <summary>
    /// Gets or sets the cost in dollar per character in the message.
    /// </summary>
    public double CostPerCharacter { get; set; }

    /// <summary>
    /// Validates that the extension implements the IMessageTransmitter interface.
    /// </summary>
    /// <param name="info"></param>
    /// <param name="context"></param>
    public override void Validate(
        Sdl.Core.PluginFramework.Validation.IExtensionAttributeInfo info,
        Sdl.Core.PluginFramework.Validation.IExtensionValidationContext context)
    {
        base.Validate(info, context);

        context.ValidateRequiredInterface(typeof(IMessageTransmitter));
    }
}

The message transmitter attribute allows plug-in developers to annotate message transmitter extension classes so they are recognized by the extension point as valid message transmitter implementations.

This example defines an extra property, CostPerCharacter, which indicates the cost in dollars for each character sent in a message.

All these properties are extracted to the plug-in manifest file by the plug-in manifest generator. As a result, the host application can access the values without creating an instance of the actual transmitters or loading the plug-in assembly. Because the plug-in manifest generator uses XML serialization to save attribute information, the attribute must have a default, parameterless constructor.

Next, define which functionality an extension class must provide to be accepted as a valid message transmitter by the host application. This is done by defining an interface:

• C#

public interface IMessageTransmitter
{
    void SendMessage(string message);
}

This simple interface contains one method, SendMessage, which is called by the host application to send a message.

Example: Creating Extensions for an Extension Point

Define a message transmitter that sends messages by email: the EmailMessageTransmitter class.

• C#

[MessageTransmitter(
    Id = "email",
    Name = "E-mail Transmitter",
    Description = "Send messages via e-mail",
    CostPerCharacter = 0.1)]
public class EmailMessageTransmitter : IMessageTransmitter
{
    public void SendMessage(string message)
    {
        Console.WriteLine();
        Console.WriteLine(String.Format("Email: {0}", message));
        Console.WriteLine();
    }
}

The EmailMessageTransmitter class implements the IMessageTransmitter interface. In addition, the class is annotated with the MessageTransmitter extension attribute, which was defined earlier and provides an ID, name, description, and cost per character.

Similar to the email transmitter, an SMS message transmitter can be defined in the same way. This can be done in the same plug-in project, because a plug-in project can contain multiple extensions.

• C#

[MessageTransmitter(
    Id = "sms",
    Name = "SMS Transmitter",
    Description = "Send messages via SMS",
    CostPerCharacter = 0.5)]
public class SMSMessageTransmitter : IMessageTransmitter
{
    #region IMessageTransmitter Members

    public int CostPerMessage
    {
        get { return 10; }
    }

    public void SendMessage(string message)
    {
        Console.WriteLine();
        Console.WriteLine(String.Format("SMS: {0}", message));
        Console.WriteLine();
    }

    #endregion
}

Auxiliary Extension Attributes

In some cases, you might need to add extra metadata to an extension implementation beyond what is defined in the extension attribute, and it might be impractical to add those properties to the extension attribute itself.

For example, consider a plug-in user action. The extension attribute for the action can define a name, icon, and tooltip, but you also need to specify which menus, toolbars, and context menus make the action available. For these cases, the plug-in framework provides auxiliary extension attributes.

You can only apply one extension attribute to an extension implementation: this is the attribute that uniquely identifies the extension point the extension implementation is targeting. On top of this, you can decorate the implementation class with as many auxiliary extension attributes as you like.

An auxiliary extension attribute needs to derive from the AuxiliaryExtensionAttribute base class. For instance, we can define a ToolBarLocation auxiliary attribute, which has a ToolBarId property that can be used to specify on which tool bar the action should appear. For menus, we can define a similar MenuLocation attribute:

• C#

public class ToolBarLocationAttribute : AuxiliaryExtensionAttribute
{
    public string ToolBarId { get; set; }
}

public class MenuLocationAttribute : AuxiliaryExtensionAttribute
{
    public string MenuId { get; set; }
}

Now the plug-in action definition can be written like this:

• C#

[Sdl.Desktop.Platform.CommandBars.Action(
    Id = "mypluginbutton",
    Name = "MyPluginAction_Name",
    Description = "MyPluginAction_ToolTipText")]
[ToolBarLocation(ToolBarId = "StandardToolBar")]
[MenuLocation(MenuId = "FileMenu")]
public class MyPluginButton2 : IPluginButton
{
    // ...
}

The collection of all auxiliary attributes for an extension can be retrieved using the AuxiliaryExtensionAttributes property.

Sortable Extension Points

The order in which extensions are processed for a particular extension point is essentially random. However, it is a fairly common requirement for extensions to have a certain order and for extensions themselves to be able to specify where they want to "appear" relative to the other extensions for that extension point. An example of this are menu item extensions: when creating a new menu item extension, there is clearly the need to specify where that menu item should appear relative to other menu items.

In order to solve this common use case, the plug-in framework provides the SortableExtensionAttribute extension attribute class. This attribute extends the standard ExtensionAttribute by adding two additional properties: InsertBefore and InsertAfter. Extensions for an extension point that derives from SortableExtensionAttribute can use these properties to specify the Id of other extensions they want to appear before or after. In addition to single Ids, these properties also accept multiple comma-separated Ids.

You can use the SortedObjectRegistry<TSortableExtensionAttribute, TExtensionType> class to create instances of all extensions for a sortable extension point and sort these according to the values of the InsertBefore and InsertAfter properties.

If you need more control when ordering extensions, you can use the TopologicalSort< T> class, which implements the sorting algorithm. You then need to provide wrapper objects that implement ITopologicalSortable for each extension.

Compile-time Extension Validation

To catch as many developer errors as possible at compile time, the plug-in framework provides a mechanism for extension point developers to validate extension definitions during build.

Every ExtensionAttribute and AuxiliaryExtensionAttribute has validation methods which are called during the build process. These methods then have the ability to report errors and warnings, which will be displayed in Visual Studio as standard compiler errors.

Extension Attribute Validation

When developing an extension point, this method can be overridden to perform additional validation.

Auxiliary Extension Attribute Validation

The AuxiliaryExtensionAttribute type also has a Validate method, which by default doesn't do any special validation. Extension point developers can override this method to perform additional validation for an auxiliary extension attribute.

Example: Compile-time Extension Validation

In our message transmitter example, the extension point checks whether the extension implements the IMessageTransmitter interface. If an extension does not implement this interface, an error will be generated at compile time.

• C#

/// <summary>
/// Validates that the extension implements the IMessageTransmitter interface.
/// </summary>
/// <param name="info"></param>
/// <param name="context"></param>
public override void Validate(
    Sdl.Core.PluginFramework.Validation.IExtensionAttributeInfo info,
    Sdl.Core.PluginFramework.Validation.IExtensionValidationContext context)
{
    base.Validate(info, context);

    context.ValidateRequiredInterface(typeof(IMessageTransmitter));
}

Consuming extensions using the PluginRegistry and ObjectRegistry

The IPluginRegistry object is the main object used by a host application or component to access and instantiate available plug-ins.

The PluginManager static class, which is the entry point to the plug-in framework object model, provides various ways to create instances of the IPluginRegistry object. By default, plug-ins are installed in the applications installation directory and plug-in manifest and resource files are installed in a "plugins" subdirectory. In order to access these plugins, you can use the DefaultPluginRegistry property, which returns an IPluginRegistry instance, that has been configured to load plug-ins from that default location.

You can easily instantiate a list of all the extension implementations registered with a particular extension point using the ObjectRegistry<TExtensionAttribute, TExtensionType> class. This is a generic class accepting two template parameters:

• TExtensionAttribute: The extension attribute type defining the extension point.
• TExtensionType: The common interface that all extensions for this extension point must implement. The CreateObjects method simply instantiates all the extension implementations and returns them in a typed array.

For sortable extension points, you can use the corresponding SortedObjectRegistry<TSortableExtensionAttribute, TExtensionType> class.

Example: Using the PluginRegistry

Returning to the message transmitter example, the next step is to write custom code that sends a message by using a message transmitter. The user can select which transmitter to use.

Message transmitters are defined in plug-ins. To use them, several steps are required. First, get the extension point from the plug-in registry. An extension point is represented by the IExtensionPoint interface and provides access to all extensions discovered for that extension point. The desired extension point is identified by passing MessageTransmitterAttribute as the template parameter:

• C#

IExtensionPoint extensionPoint = PluginManager.DefaultPluginRegistry.
                                    GetExtensionPoint<MessageTransmitterAttribute>();

Second, prompt the user to enter a message:

• C#

Console.Write("Enter your message: ");
string message = Console.ReadLine();

Next, list all available message transmitters, along with their name and cost per character. This is done by iterating over the Extensions collection of the extension point, which contains IExtension objects. These provide access to the extension attribute used to annotate the corresponding extension implementation classes. The name and cost per character can be retrieved from MessageTransmitterAttribute:

• C#

int i = 0;
Console.WriteLine("Available message transmitters:");
foreach (IExtension extension in extensionPoint.Extensions)
{
    MessageTransmitterAttribute extensionAttribute =
        (MessageTransmitterAttribute)extension.ExtensionAttribute;

    Console.WriteLine(String.Format("{0}) {1} (cost per character: ${2})",
        ++i,
        extensionAttribute.Name,
        extensionAttribute.CostPerCharacter));
}

Console.WriteLine(String.Format("Choose a message transmitter (1-{0}):", i));
int number = Convert.ToInt32(Console.ReadLine());

Now get the extension object corresponding to the user's choice, and retrieve the extension attribute instance:

• C#

IExtension selectedExtension = extensionPoint.Extensions[number - 1];

At this point we are ready to create the actual message transmitter implementation, using the IExtension object:

• C#

IMessageTransmitter selectedTransmitter =
                        (IMessageTransmitter)selectedExtension.CreateInstance();

Finally, call the SendMessage method to send the message:

• C#

selectedTransmitter.SendMessage(message);

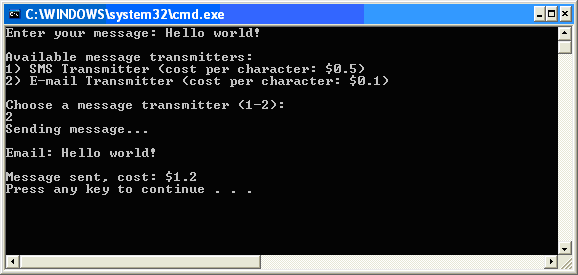

The application produces the following output:

Example: Using the ObjectRegistry

In the example above, we explicitly went through the plug-in registry object model to illustrate how the various classes interact. As an easier alternative, we can quickly create a list of extension implementation objects using the ObjectRegistry<TExtensionAttribute, TExtensionType> :

• C#

ObjectRegistry<MessageTransmitterAttribute, IMessageTransmitter> objectRegistry
    = new ObjectRegistry<MessageTransmitterAttribute, IMessageTransmitter>
                (PluginManager.DefaultPluginRegistry);

IMessageTransmitter[] messageTransmitters = objectRegistry.CreateObjects();
