Integrating with a Security Token Service (STS)

This article explains how to use the module's cmdlets to integrate with a Security Token Service, also referred to as STS.

Acknowledgements

When a service provider integrates with an STS, it requires some information exchange. In the context of this article, the service provider is Content Manager.

Content Manager requires the following information:

  • WS Federation endpoint
  • WS Trust endpoint
  • WS Trust binding type
  • WS Trust Metadata Exchange endpoint
  • Token signing certificate thumbprint

The following values assume an STS at sts.example.com:

#Issuer name
$issuerName="Example STS (20160101)"
#WS Federation endpoint
$wsFederationUri="https://sts.example.com/wsfed"
#WS Trust endpoint
$wsTrustUri="https://sts.example.com/wstrust/UsernameMixed"
#WS Trust metadata exchange endpoint
$wsTrustMexUri="https://sts.example.com/wstrust/mex"
#The authentication type
$bindingType="UsernameMixed"
#Token signing thumbprint
$tokenSigningCertificateThumbprint="2509fb22f7671aea2d0a28ae80516f390de0ca21"

When the authentication type is Windows, the values change like this:

#WS Trust endpoint
$wsTrustUri="sts.example.com/wstrust/WindowsMixed"
#The authentication type
$bindingType="WindowsMixed"

STS requires the following information:

  • The endpoints to create relying parties for:
    • ISHCM e.g. https://ish.example.com/ISHCM
    • ISHWS e.g. https://ish.example.com/ISHWS. Although not required, it is recommended to create relying parties for each .svc endpoint in ISHWS, e.g. https://ish.example.com/ISHWS/Wcf/API25/Application.svc
  • For each ISHWS based identifier, the public key to encrypt the tokens.
  • Expected token claim composition. This drives the claims transformation rules.

Implementing the integration on Content Manager

There are two kinds of integration:

  1. Only the clients that are not in the server zone, use the STS at sts.example.com to authenticate. All clients within the server zone continue using the internal ISHSTS.
  2. All clients in the user and server zone, use the STS at sts.example.com to authenticate.

The differences are shown in the following images:

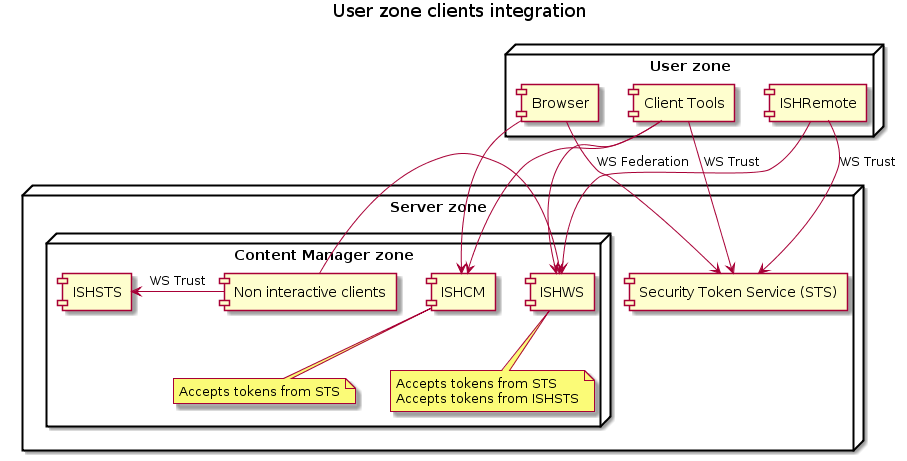

User zone integration

Set the deploymentName variable

First set the deploymentName variable:

$deploymentName="InfoShare"

Then:

# Set WS Federation integration
Set-ISHIntegrationSTSWSFederation -ISHDeployment $deploymentName -Endpoint $wsFederationUri
# Set WS Trust integration
Set-ISHIntegrationSTSWSTrust -ISHDeployment $deploymentName -Endpoint $wsTrustUri -MexEndpoint $wsTrustMexUri -BindingType $bindingType
# Set Token signing certificate
Set-ISHIntegrationSTSCertificate -ISHDeployment $deploymentName -Issuer $issuerName -Thumbprint $tokenSigningCertificateThumbprint

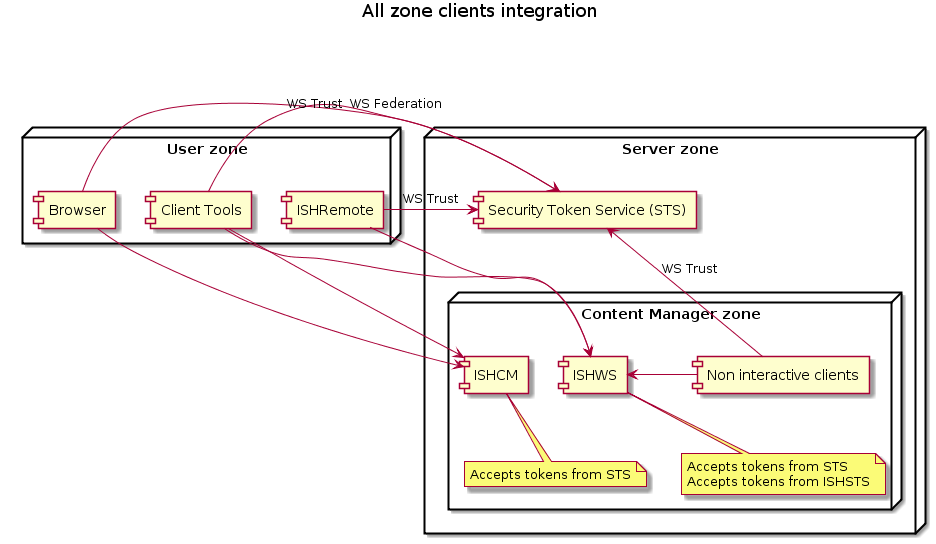

All zone integration

Set the deploymentName variable

First set the deploymentName variable:

$deploymentName="InfoShare"

The internal clients are all non interactive. That means they require a pre-configured set of credentials to use during authentication. When these clients are redirected to the STS at sts.example.com, then there are two options:

  • When the authentication type is windows, the osuser credential set will be used.
  • When the authentication type is username/password, -ActorUsername and -ActorPassword must be provided.

Here is an example of username/password authentication:

# Set WS Federation integration
Set-ISHIntegrationSTSWSFederation -ISHDeployment $deploymentName -Endpoint $wsFederationUri
# Set WS Trust integration
Set-ISHIntegrationSTSWSTrust -ISHDeployment $deploymentName -Endpoint $wsTrustUri -MexEndpoint $wsTrustMexUri -BindingType $bindingType -IncludeInternalClients
# Set Token signing certificate
Set-ISHIntegrationSTSCertificate -ISHDeployment $deploymentName -Issuer $issuerName -Thumbprint $tokenSigningCertificateThumbprint

Here is an example of windows authentication

# Set WS Federation integration
Set-ISHIntegrationSTSWSFederation -ISHDeployment $deploymentName -Endpoint $wsFederationUri
# Set WS Trust integration
Set-ISHIntegrationSTSWSTrust -ISHDeployment $deploymentName -Endpoint $wsTrustUri -MexEndpoint $wsTrustMexUri -BindingType $bindingType -IncludeInternalClients
# Set Token signing certificate
Set-ISHIntegrationSTSCertificate -ISHDeployment $deploymentName -Issuer $issuerName -Thumbprint $tokenSigningCertificateThumbprint

Implement the integration on the Security Token Service

For every STS the configuration is different. Therefore the module's Save-ISHIntegrationSTSConfigurationPackage generates a set of important information for configuring Content Manager's relying parties.

$filename="$(Get-Date -Format "yyyyMMdd").IntegrationISH.zip"
Save-ISHIntegrationSTSConfigurationPackage -ISHDeployment $deploymentName -FileName $filename

Inside the zip file you will find two files:

  • CM Security Token Service Requirements.md that is a markdown file with the specific deployment information.
  • ishws.cer that is the public key of the ISHWS service certificate. This was added for your convenience.

Enable authentication with Content Manager internal users

While the deployment is integrated with an external security token service (STS), it could be requested that the system allows access for internal users without modifying the integration. An internal user is one that has a username and password in the Content Manager database, and the credential will be validated by ISHSTS.

# Just Content Manager (ISH)
Enable-ISHIntegrationSTSInternalAuthentication -ISHDeployment $deploymentName

If the deployment is integrated with Collaborative Review, provide the necessary values like this:

# When the deployment is integrated with Collaborative Review (LC)
Enable-ISHIntegrationSTSInternalAuthentication -ISHDeployment $deployment -LCHost "lc.example.com" -LCWebAppName "ContentDelivery"

Enable-ISHIntegrationSTSInternalAuthentication will enable a special url at https://ish.example.com/ISHWS/Internal/. Provide this url to any user that wishes to log in with internal users.

To disable this mode, use Disable-ISHIntegrationSTSInternalAuthentication:

Disable-ISHIntegrationSTSInternalAuthentication -ISHDeployment $deploymentName
